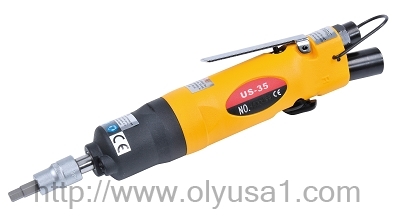

Torque Control (Non & Shut-Off) Oil Pulse Tools - US series

US = Sq.
Model	Capacity (Nominal Bolt Size)		Torque Range				Free Speed	Sq. Drive or Hex. Size	Air Consumption	Length	Weight
	Capacity (Nominal Bolt Size)		0.6 Mpa		0.4 Mpa		Free Speed	Sq. Drive or Hex. Size	Air Consumption	Length	Weight
	mm	in	N.m	Ft.lbs	N.m	Ft.lbs	r.p.m	in	m³/min	mm	Kg
US-20	M5	3/16	10~20	7.4~14.8	10~20	5.9~10.3	7500	3/8	0.20	220	0.95
US-28	M6~M8	1/4~5/16	16~28	11.8~20.7	16~28	8.9~14.8	7000	3/8	0.25	250	0.90
US-35	M8	5/16	20~35	14.8~25.9	20~35	11.8~19.2	6500	3/8	0.30	256	1.00
