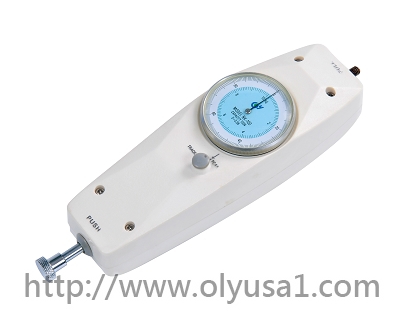

Indicator Force Gauges

Indicator Force Gauges

NK Serials

NK series of indicator force gauge (pull force gauge) are portable testing instruments of easy operation, high precision,easy portability, peak value maintenance, and simultaneous display of two scales. The new substitutes of old gauge, such as pull force load testing, pull and push force testing and destructive testing, are also widely used in high-voltage and low-voltage electric appliance, electronics, hardware lock- making, automobile accessories, lighters and igniting devices, pen-making, light industry, constructions, textiles, mechanical engineering, and IT field.

Indicator Force Gauges Features

NK Serials

● High Accuracy ( 0.5% of Full scale )

● 1 / 200 The scale plate is clear legibly

● Dual scales : N、kgf

● Real time and peak mode

● Zeroing by quick press on switch

● The structural weight is light,The one-handed operation is very flexible.

● More accurate and more stable measurement is possible when the device is attached on a test stand

Indicator Force Gauges Specification

NK Serials

Model	Max. Load		Min. Resolution
Model	N	kgf	N	gf
NK-10	10	1	0.05	5
NK-20	20	2	0.1	10
NK-30	30	3	0.2	20
NK-50	50	5	0.25	25
NK-100	100	10	0.5	50
NK-200	200	20	1	100
NK-300	300	30	2	200
NK-200	500	50	2.5	250
